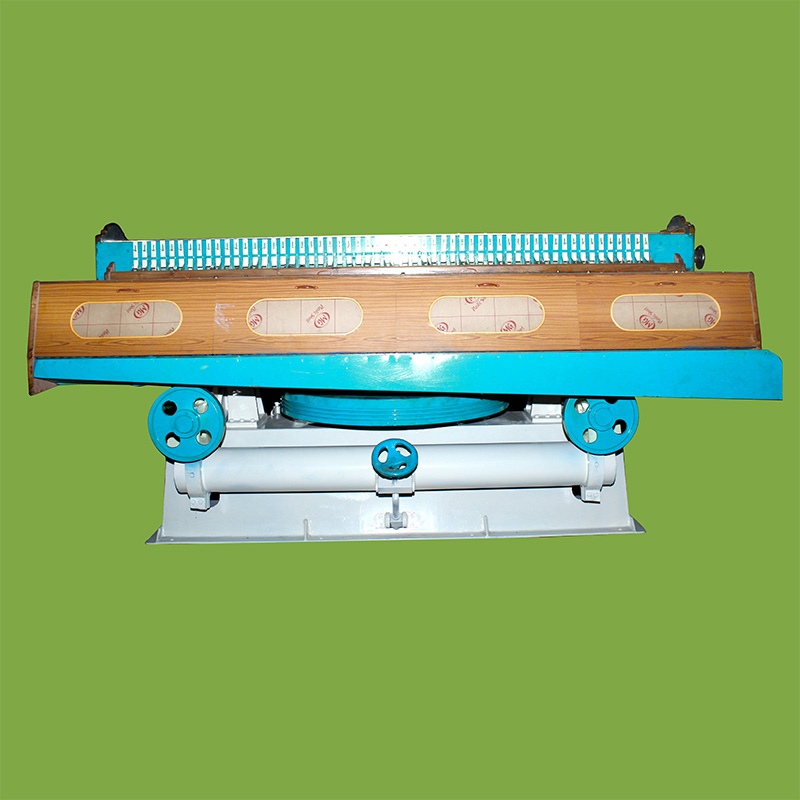

Paddy Separator Schuley Type

Paddy Separator Schuley Type

Paddy Separator is designed to separate the brown rice from the mixture of paddy and brown rice.

The separation is accomplished by passing the grain mix through a series of z shaped baffle compartments mounted on an inclined oscillating table utilizing the difference in the specific gravity and surface texture of the grains. There will be number of trays in this machine depending upon the capacity.

CODE No PRODUCT
NAME
CAPACITY
ON PADDY
POWER RECOMMENDED DIMENTIONS APPROXIMATE
L B H
PSA48 PADDY SEPARATOR 3.8 TON / hr 3 HP / 960 RPM 3810mm 1750mm 1700mm
PSA56 PADDY SEPARATOR 4.5 TON / hr 3 HP / 960 RPM 3600mm 1750mm 1780mm
PSA64 PADDY SEPARATOR 5 TON / hr 5 HP / 960 RPM 3810mm 1750mm 1780mm
PSA84 PADDY SEPARATOR 6.5 TON / hr 7.5 HP / 960 RPM 4870mm 1750mm 1780mm
PSA100 PADDY SEPARATOR 8 TON / hr 7.5 HP / 960 RPM 5640mm 1750mm 1780mm
PSA108 PADDY SEPARATOR 8.5 TON / hr 7.5 HP / 960 RPM 5950mm 1750mm 1780mm
